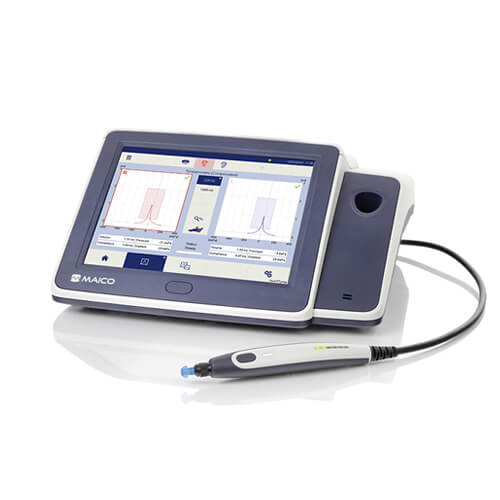

MAICO touchTymp Screening (MI-24 / MI-26) – Touch-Based Screening Tympanometer with Optional Audiometry

The MAICO touchTymp Screening line (models MI-24 and MI-26) offers an intuitive, efficient solution for middle ear screening in both pediatrics and general ENT/audiology clinics. With its large 10.4-inch touchscreen, high resolution graphics, and simple touch-based interface, the touchTymp makes it easy to carry out tympanometry and reflex tests with speed and accuracy.

The standard probe tone is 226 Hz, with an optional higher-frequency 1 kHz probe available — especially useful when testing infants. Acoustic reflex testing is supported at multiple frequencies (500 Hz, 1 kHz, 2 kHz, 4 kHz), with both ipsilateral reflexes as standard; contralateral as option. Children are kept engaged using the RaceCar animation, which helps reduce test artifacts and make the process smoother.

Print-outs are made easy via the built-in printer, and data can be exported or managed via MAICO Sessions software. For users needing more, the MI-26 version adds air and bone conduction audiometry, so you can perform more complete screening without needing separate devices.

Applications

• Pediatric screening / newborn / infant middle ear assessment

• General clinics for detecting middle ear issues (fluid, otitis media, eardrum perforation etc.)

• Schools / hearing conservation programs

• Outreach / mobile clinics where ease of use and fast results are important

Technical Highlights

• Probe tones: 226 Hz (standard), 1 kHz optional

• Reflex frequencies: 500 Hz, 1 kHz, 2 kHz, 4 kHz

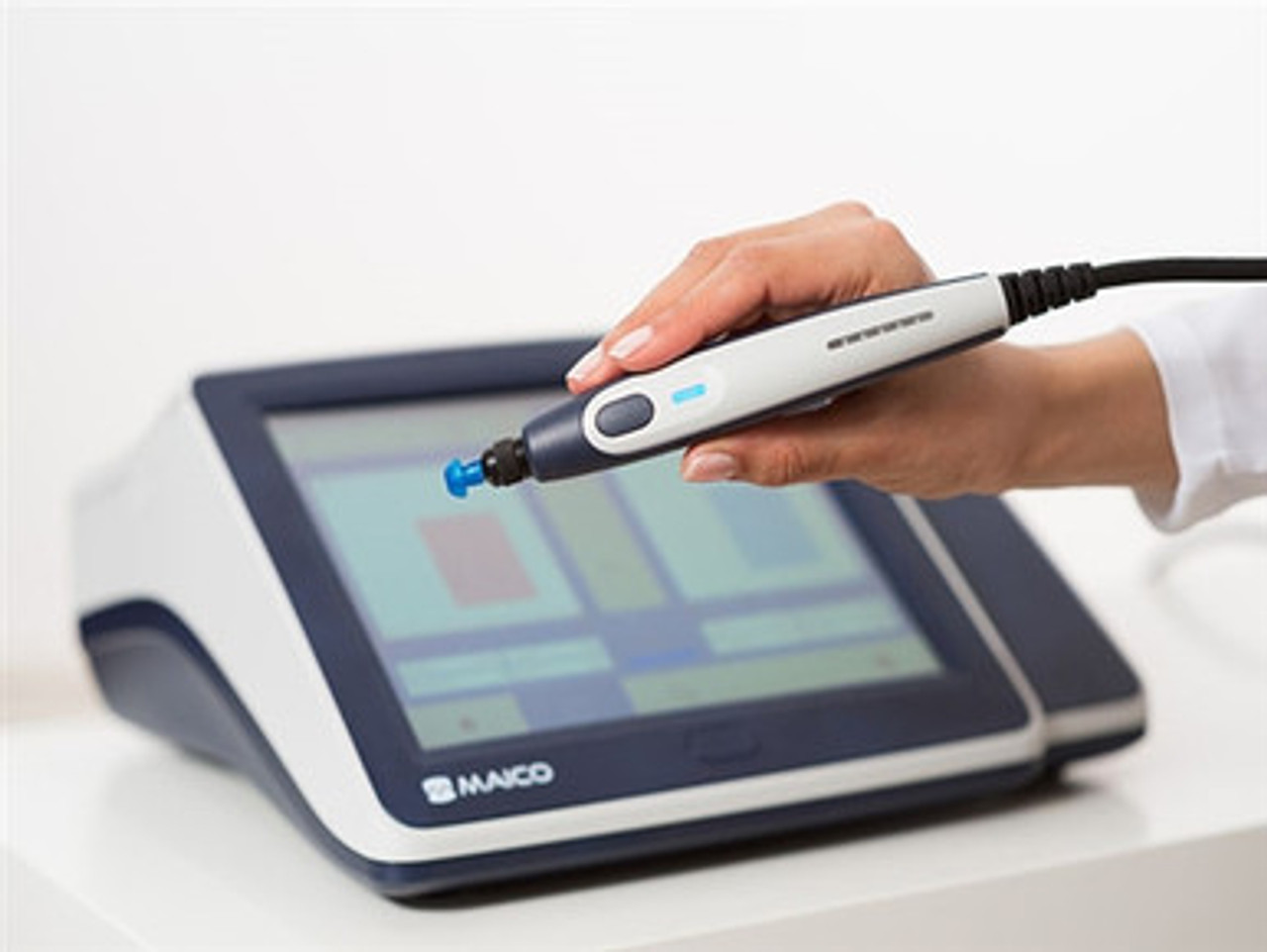

• Interface: touch screen, pen probe with light bar feedback

• Built-in printer included

• Optional audiometry (AC & BC) in MI-26 version
